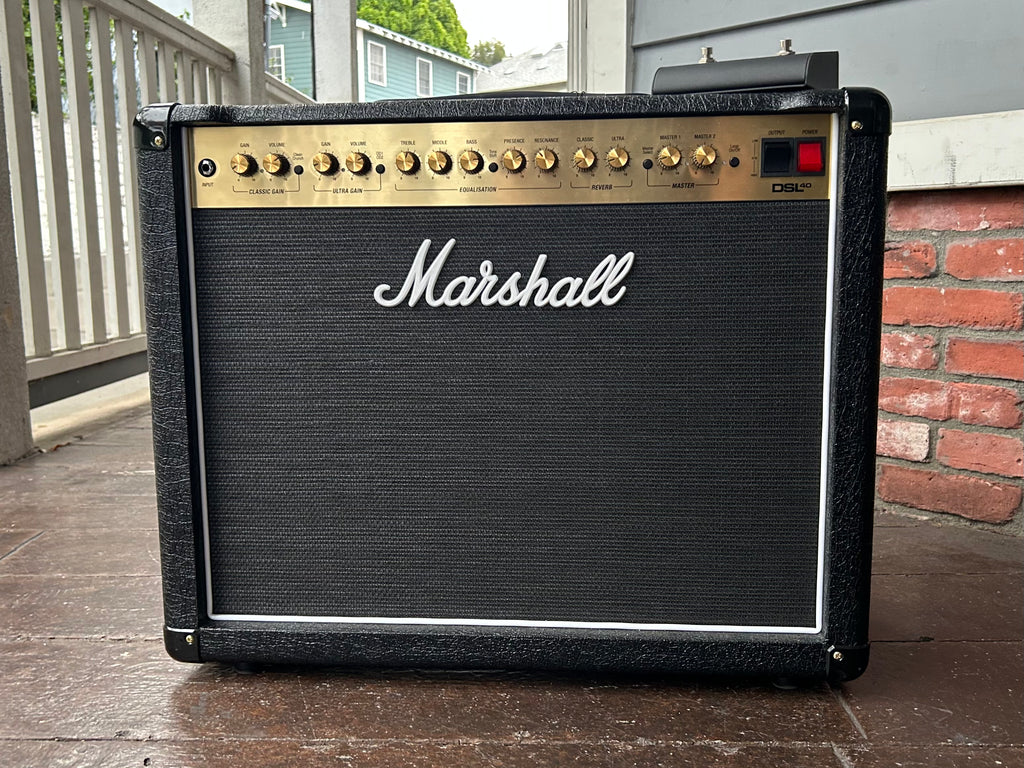

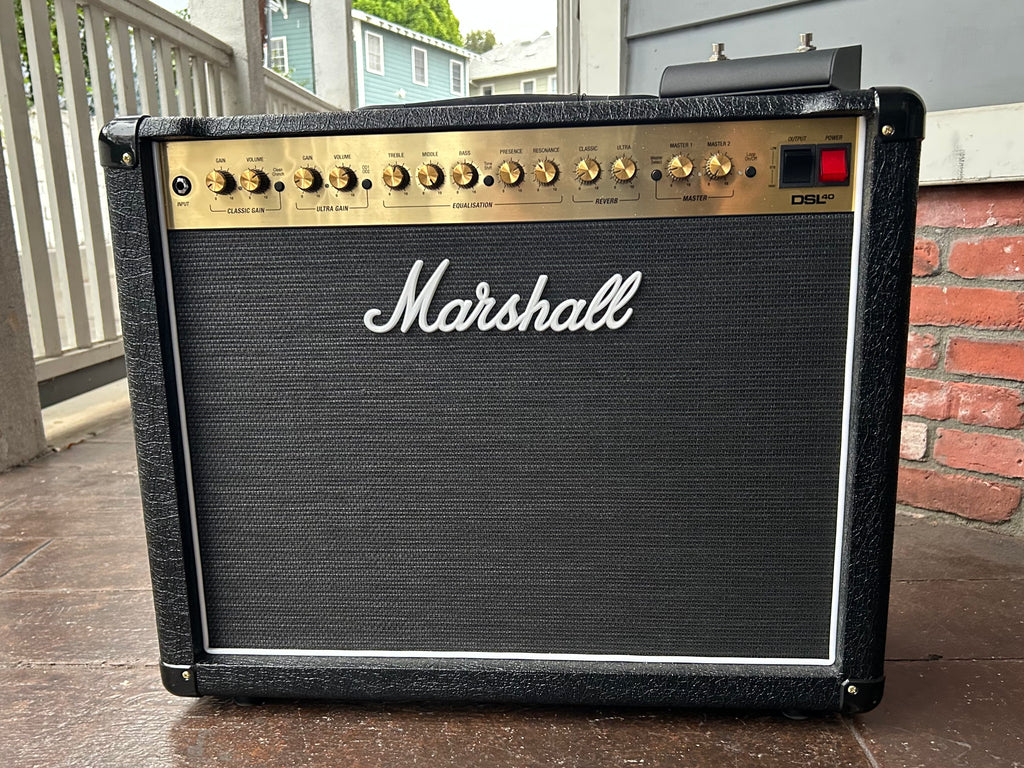

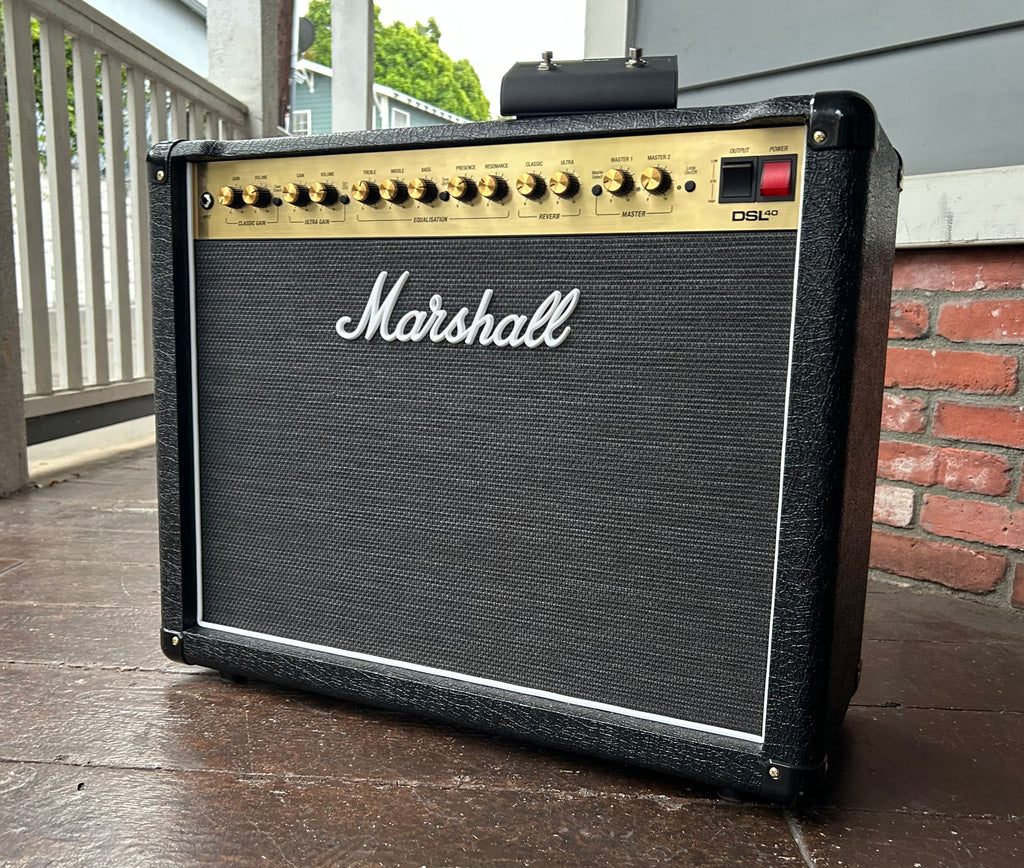

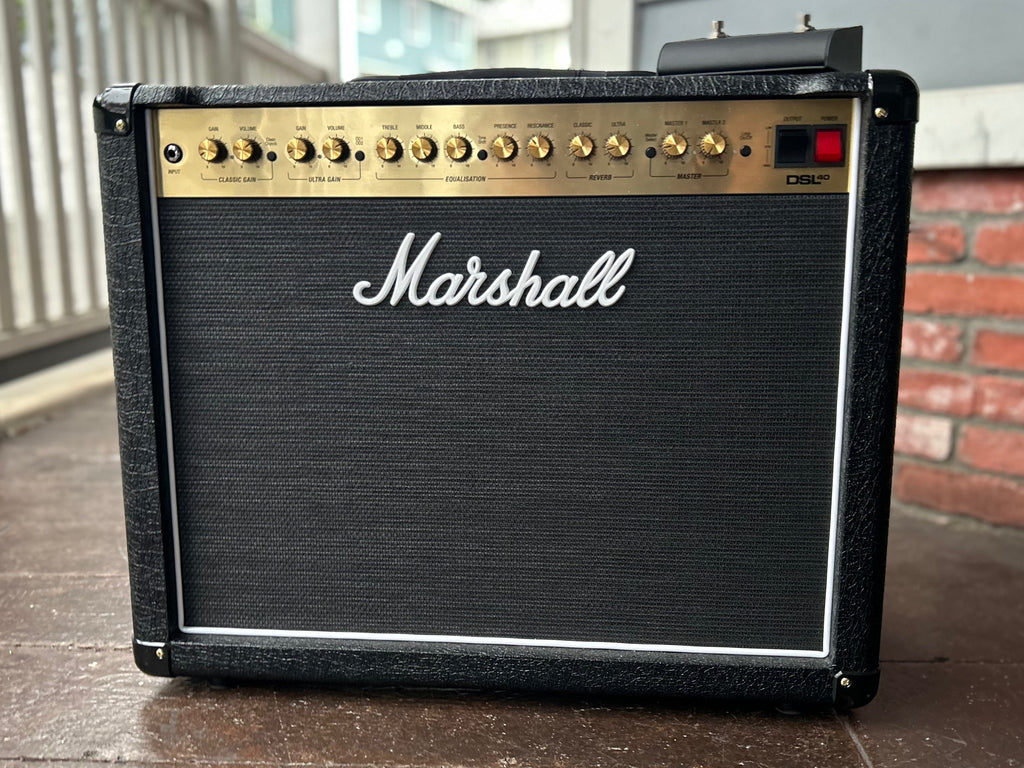

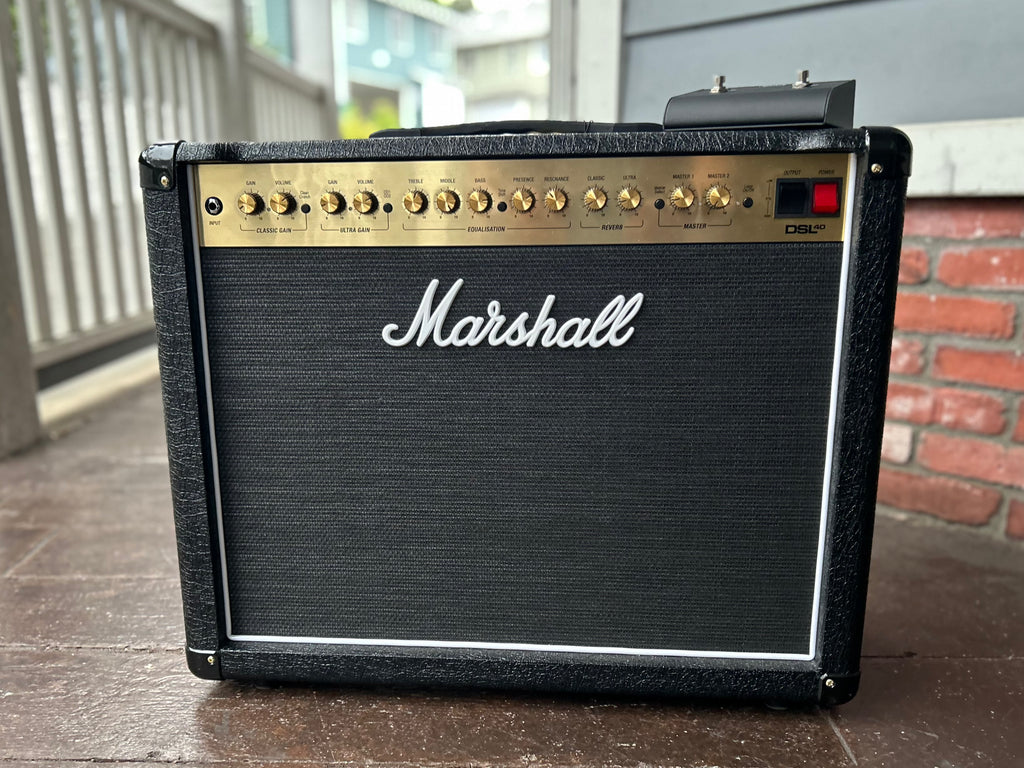

Marshall DSL40 Combo

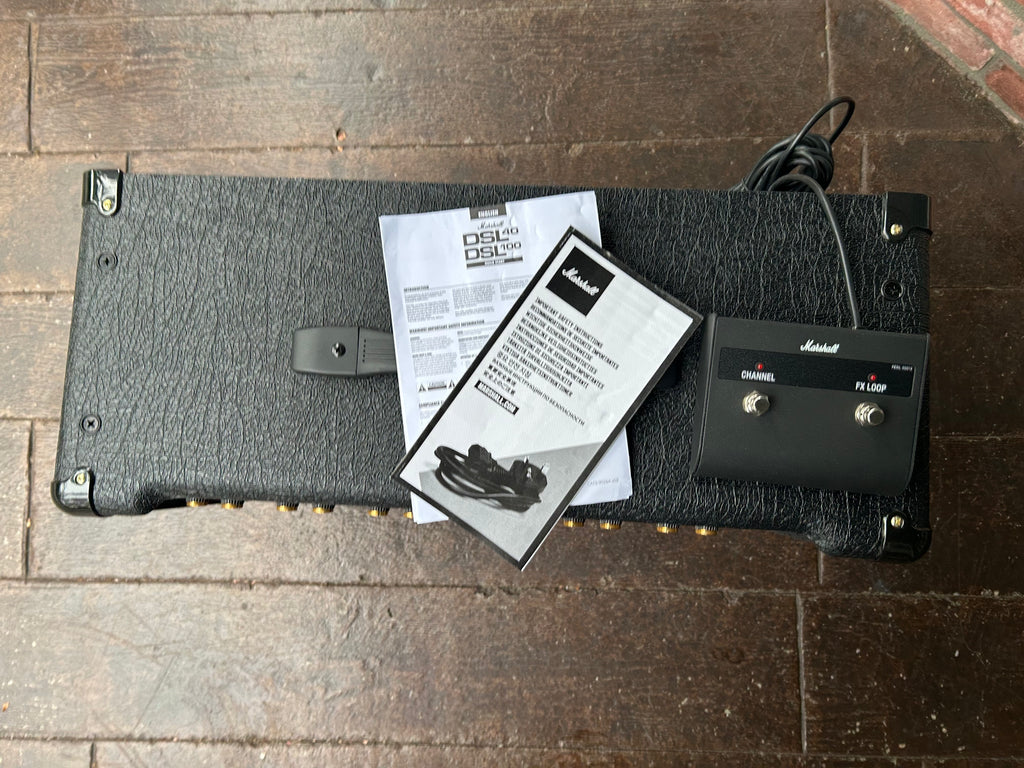

With footswitch
The DSL40 Combo has been designed with a 12” G-12 V-Type speaker for those who need exceptional tone and flexibility.
With rich functionality including the ability to move between two sounds within each gain channel, players can experiment and release their personality through sound.
Features
Tech Specs - Icon - Generic
All-valve
Tech Specs - Icon - Generic
40W to 20W at the flick of a switch
Tech Specs - Icon - Generic
12-inch Celestion V-Type speaker
Tech Specs - Icon - Generic
Five speaker outputs
Tech Specs - Icon - Generic
Compact and portable
Tech Specs - Icon - Generic
Suitable for a variety of genres
GENERAL
Model
DSL40 Combo
Range
DSL
CHANNELS
2, EACH WITH 2 MODES
TECHNOLOGY
Valve
ELECTRONICS
Output wattage
40W (with power reduction option to 20W)
OUTPUTS

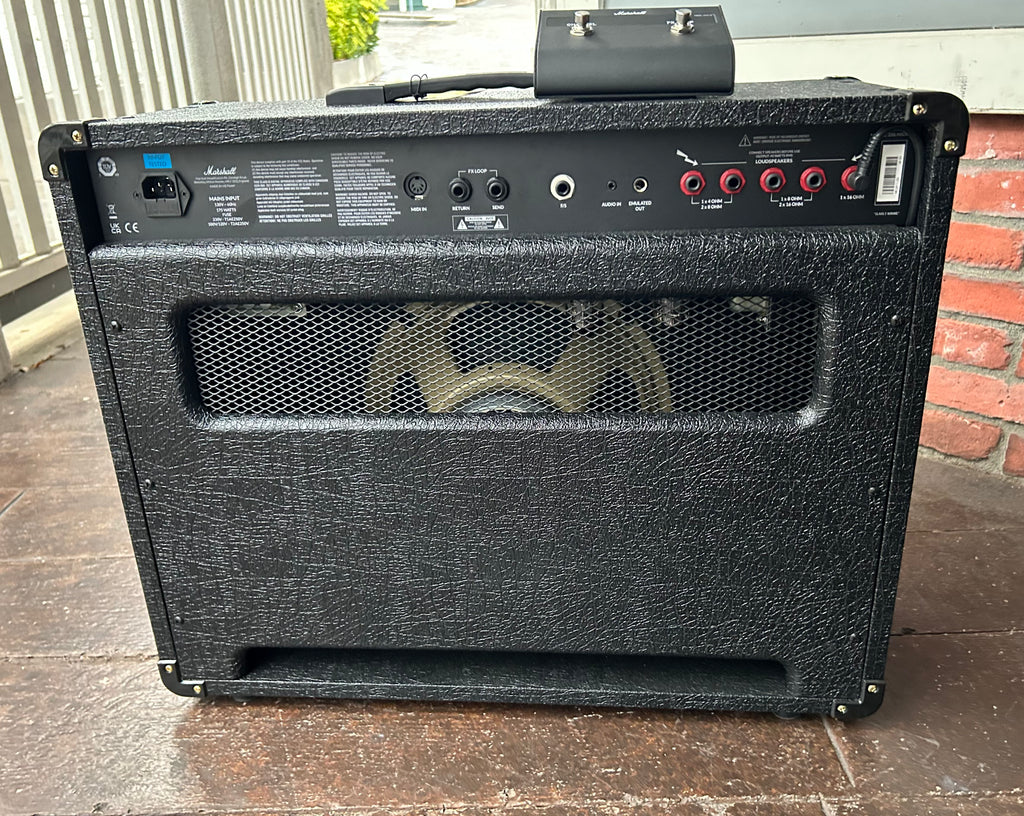

Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), 1 x 1/4" jack emulated line out
INPUTS
1 x 1/4" instrument jack, 1 x 3.5mm jack Auxiliary MIDI input, footswitch
controls
Classic gain channel (gain, volume, clean crunch switch), ultra gain channel (gain, volume, OD1/OD2 switch), treble, middle, bass, tone shift switch, presence, resonance, reverb (classic gain channel), reverb (ultra gain channel), master select switch, master volume I, master volume II, loop on/off switch, low power option (on rear)
Effects
Digital reverb
Effects loop
Yes, series, send/return
SPEAKERS
Speaker configuration
1x12"
Speaker model
Celestion V-Type speaker (16Ω, 70w)
Unit impedance
16Ω
VALVES
Preamp valves
4 x ECC83
Power amp valves
2 x EL34
UNIT DIMENSIONS
WEIGHT (KG)
22.9 kg / 50 lbs
