Kingsley Amplifiers Juggler V3

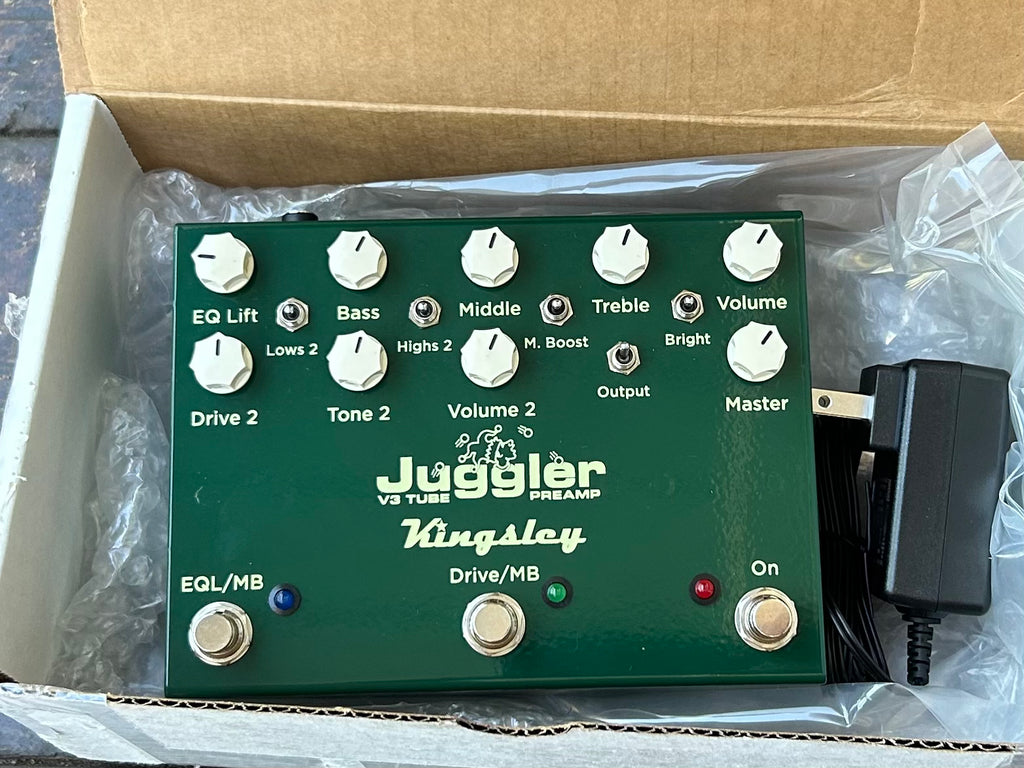

With power supply
The new Juggler V3 is based on the same Dumble ODS inspired circuit with two 12ax7s, however it has all of the features of the Maiden V2 and Page DS, as well as some other useful features
Here is a basic rundown:

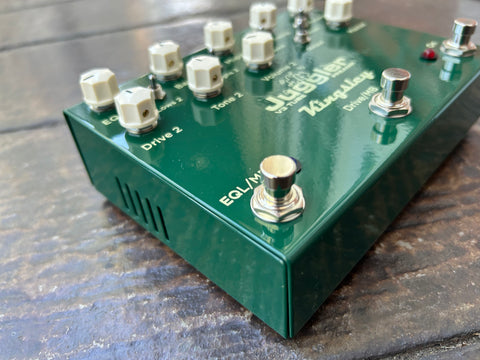

3 footswitches - On/Off, Drive/Mid Boost, EQ Lift/Mid Boost. Note that the Drive footswitch can automatically activate the mid boost at the same time if desired. This way you can have the clean channel with no Mid Boost but the Drive channel with Mid Boost. The EQ lift/Mid Boost footswitch can activate either the EQ lift or the Mid Boost. The Mid Boost can also be set to be on at all times.

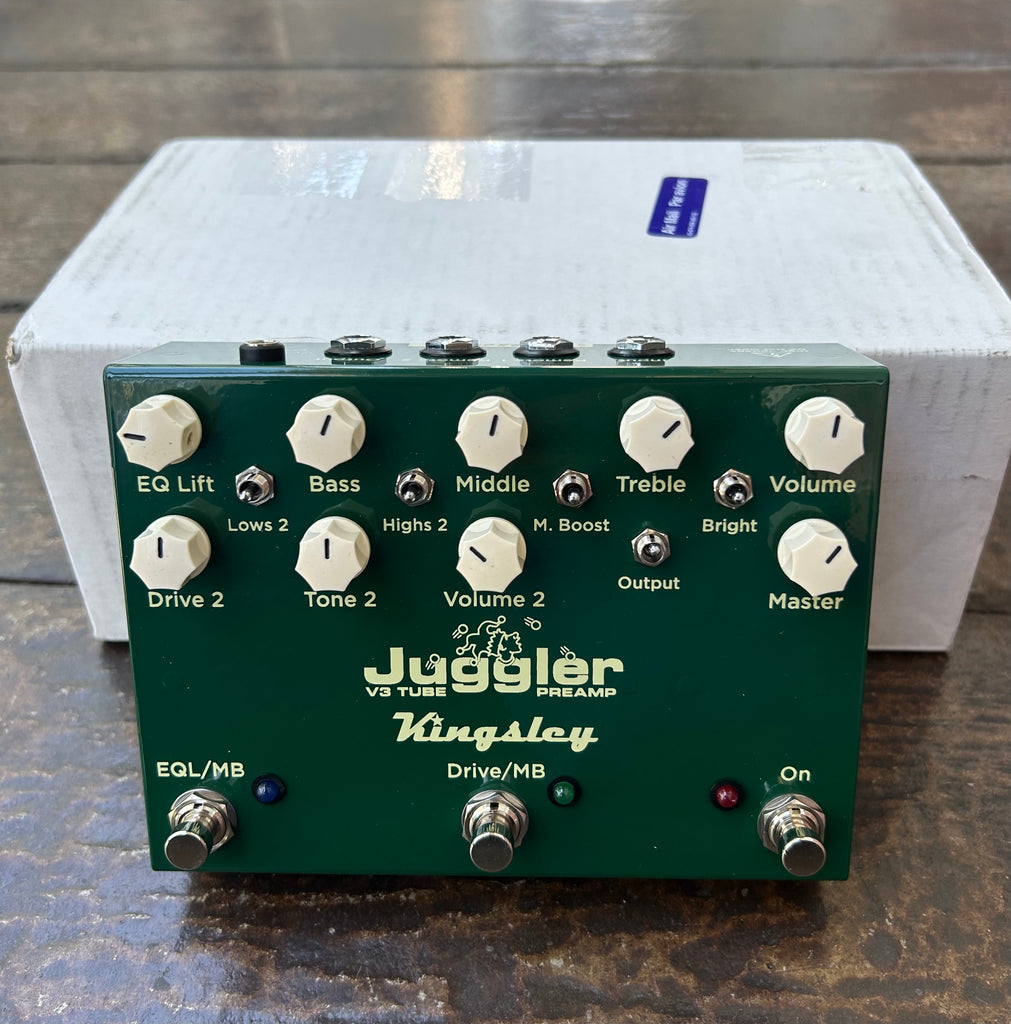

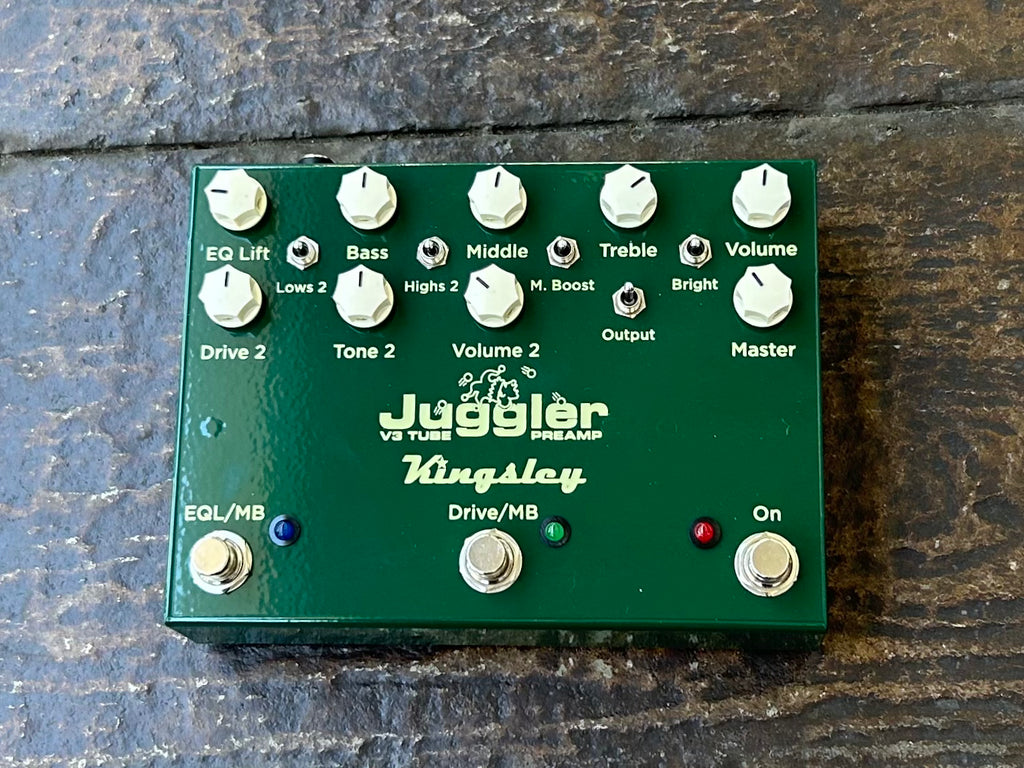

Clean channel: Volume, Treble, Middle, Bass, 3-way Bright switch, Mid boost switch, EQ lift footswitch, EQ lift level pot
Drive channel: Drive, Tone, Volume, 3-way Lows switch, 3-way Highs switch

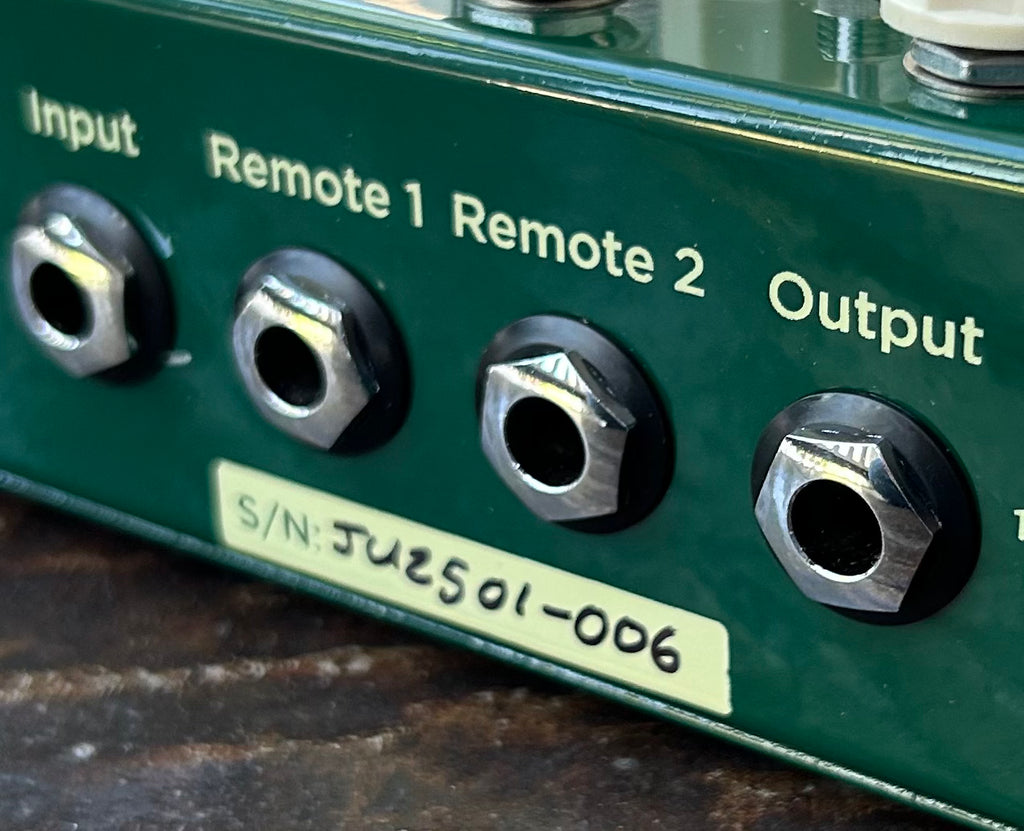

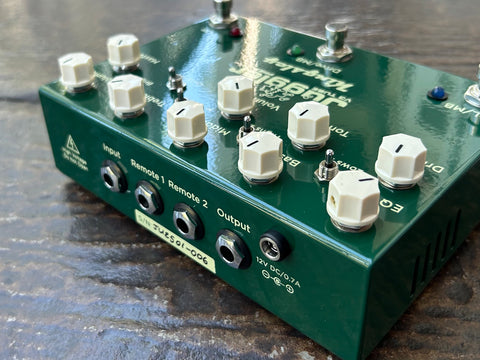

Other features: global Master Volume, 3-way Output switch (front of amp use, instrument level preamp use, full output preamp use), Two remote jacks for channel select, EQ lift and Mid Boost functions (one jack is a TRS jack that can be used for channel select or Mid Boost alone, or both channel select and Mid Boost select), high voltage mosfet buffer output (no need for an effects loop as the output impedance is already low and the Output switch and Master Volume make it very easy to add effects after the whole preamp).

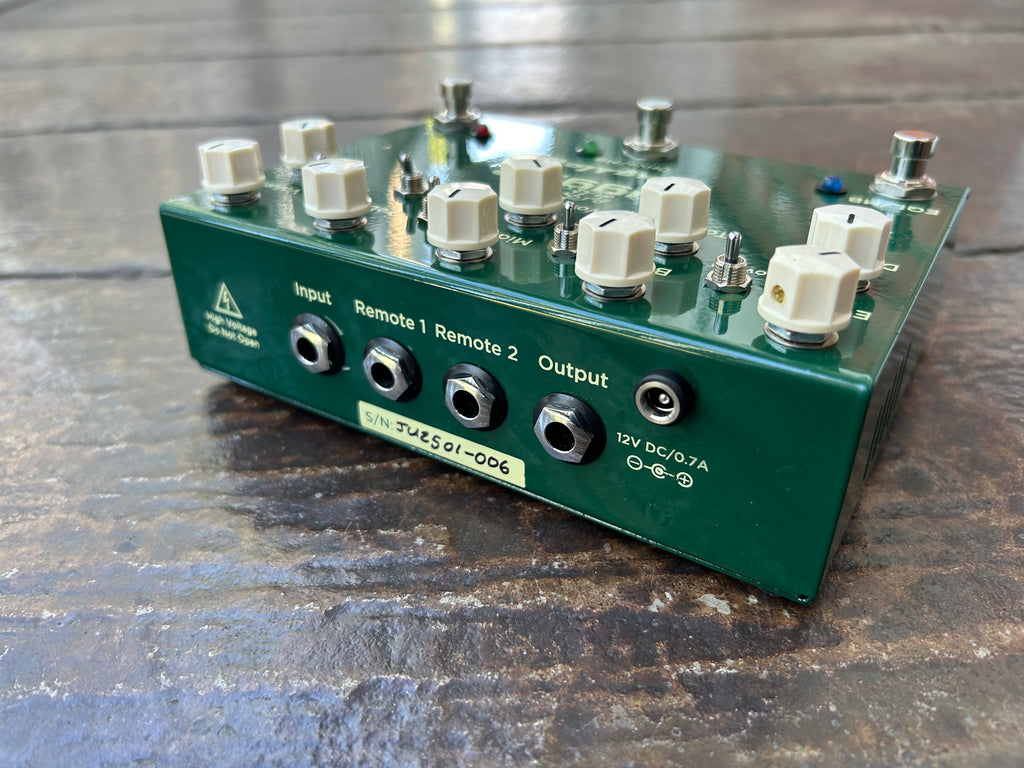

Power supply requirements: 12VDC @700mA with a center positive 2.1mm plug
