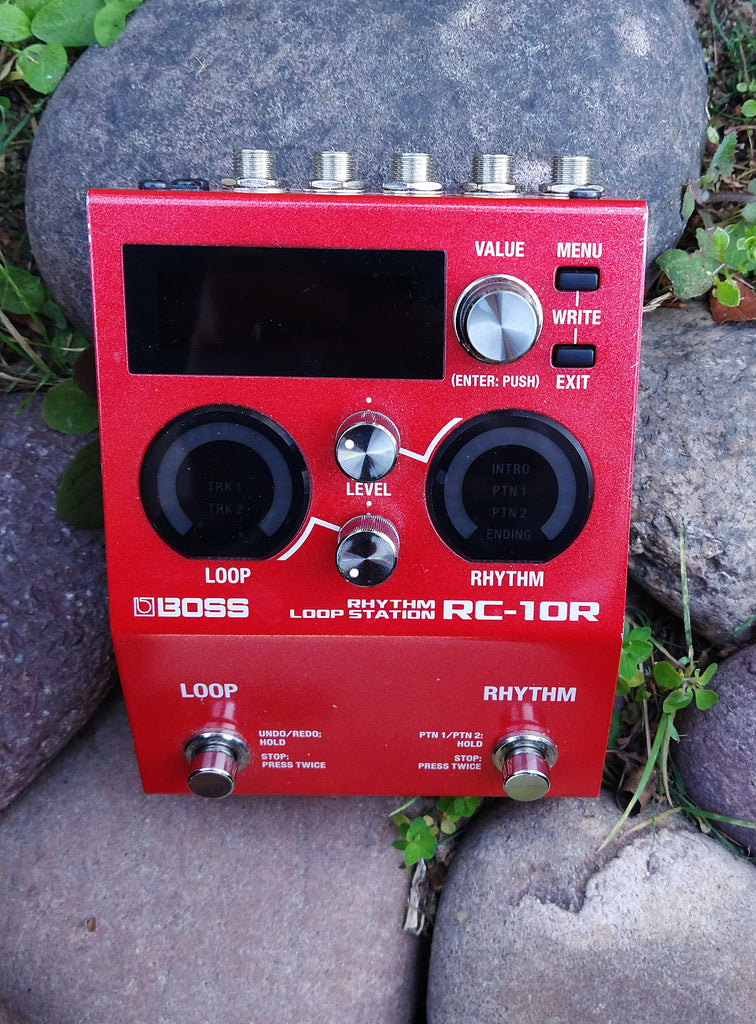

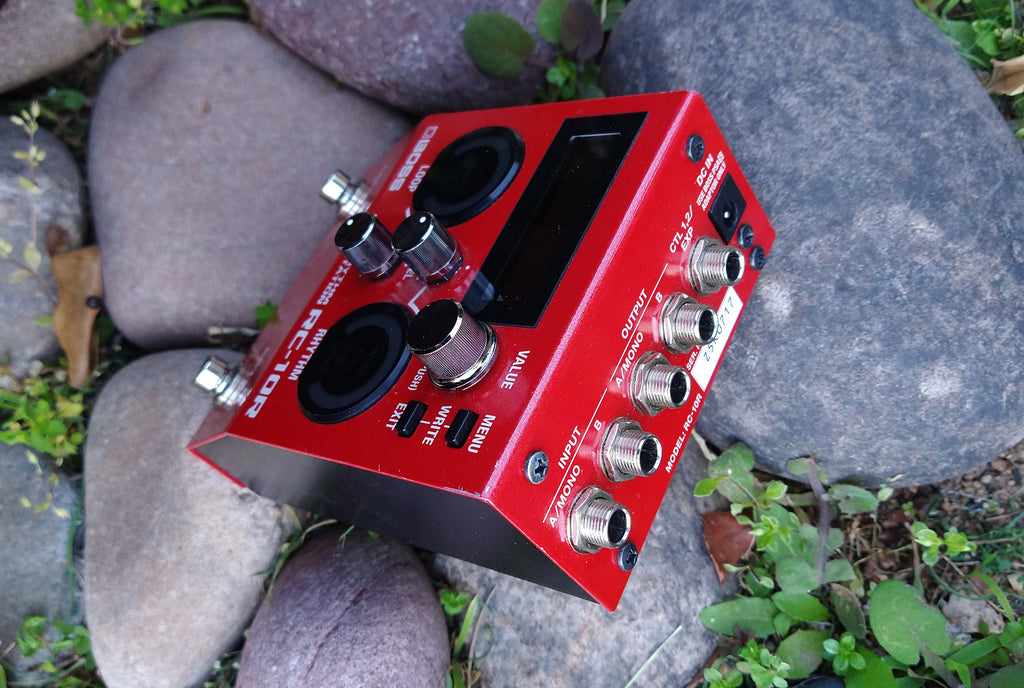

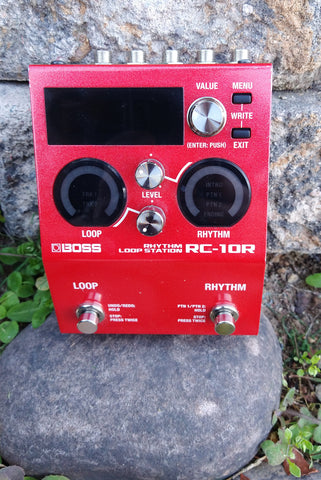

Boss RC-10R Rhythm Loop Station
SPECIFICATIONS (LOOPER)
Sampling Frequency44.1 kHzAD/DA Conversion32 bitsProcessing32-bit floating pointRecording/PlaybackMaximum Recording Time: Approx. 6 hours (stereo)
Maximum Phrase Memory: 99
Number of Tracks: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
SPECIFICATIONS (RHYTHM)
Rhythm Type280 types or greaterRhythm ControlIntro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, EndingRhythm Kit16 typesMaximum Polyphony24 voicesEffectReverb (only for rhythm part)
SPECIFICATIONS (COMMON)
Memory99Nominal Input Level
INPUT A/MONO, B: -10 dBuMaximum Input Level
INPUT A/MONO, B: +8 dBuInput ImpedanceI
NPUT A/MONO, B: 1 M ohmNominal Output Level
OUTPUT A/MONO, B: -10 dBuMaximum Output Level
OUTPUT A/MONO, B: +8 dBuOutput Impedance
OUTPUT A/MONO, B: 1 k ohmsRecommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greaterBypassBuffered bypassControls
RHYTHM switch, LOOP switch
VALUE knob, RHYTHM LEVEL knob, LOOP LEVEL knob
MENU button, EXIT buttonDisplay16 characters x 2 lines LCD (with backlit)IndicatorRHYTHM indicator, LOOP indicatorConnectorsINPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack
USB COMPUTER port: USB micro B typePower SupplyAC adaptorCurrent Draw250 mA
