FEATURES
- Class AB 50W+50W Stereo Tube Power Amp
- Bridged mono for full 100 watts
- (4) 6L6GC Premium Matched Power Tubes
- (2) 12AX7 Preamp/Phase Inverter Tubes
- Selectable Impedance (4/8/16 Ohm)
- Single Volume Control (Adjusts both channels simultaneously)
- Presence switch with internal trim pot
- Depth switch with internal trim pot
- Super-quiet multi-speed cooling fan
- Independent channel standby
- 100% analog signal path

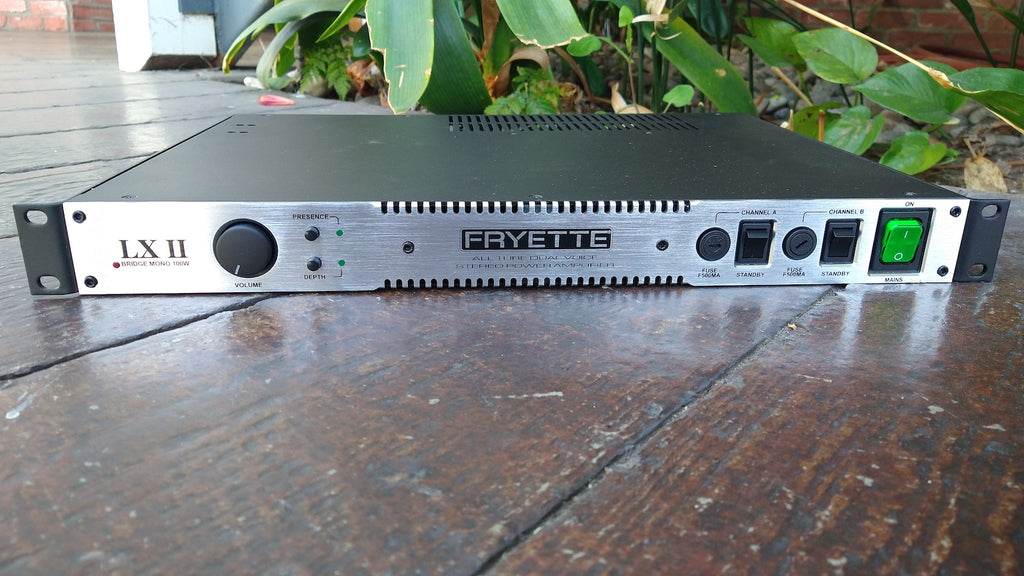

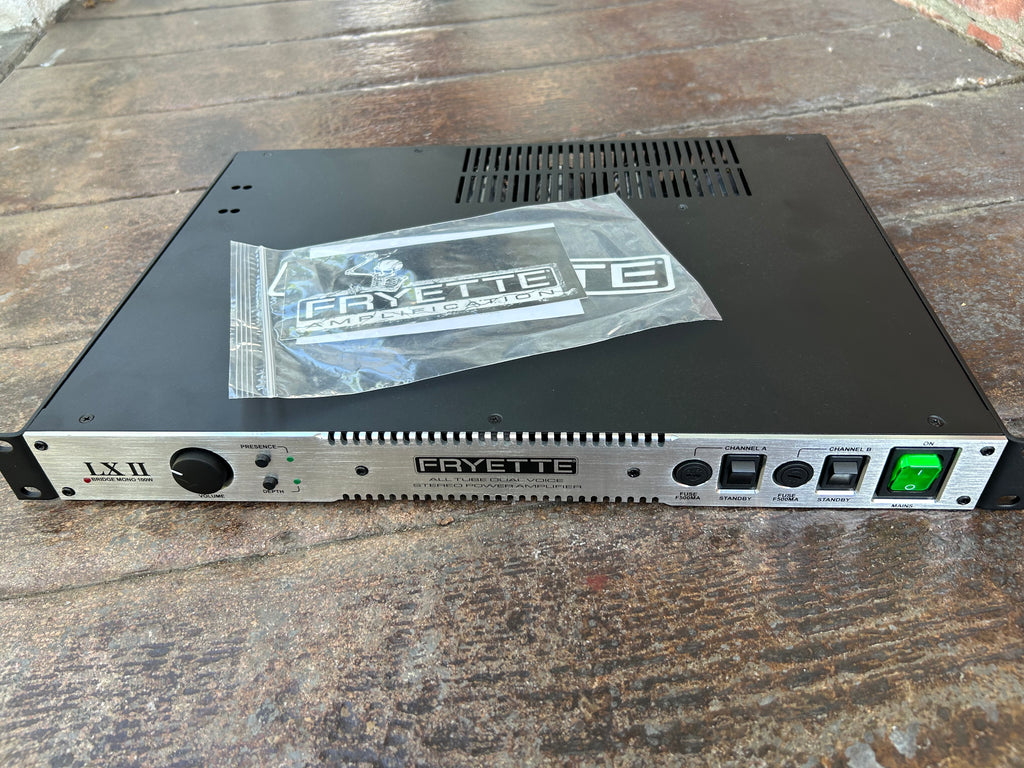

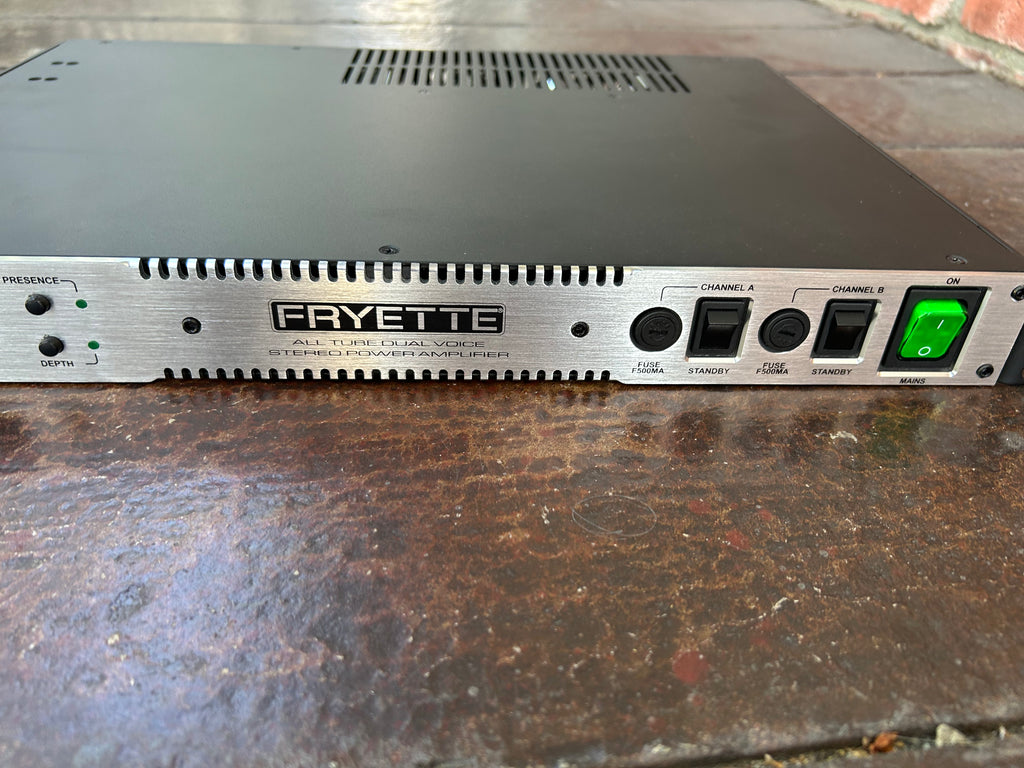

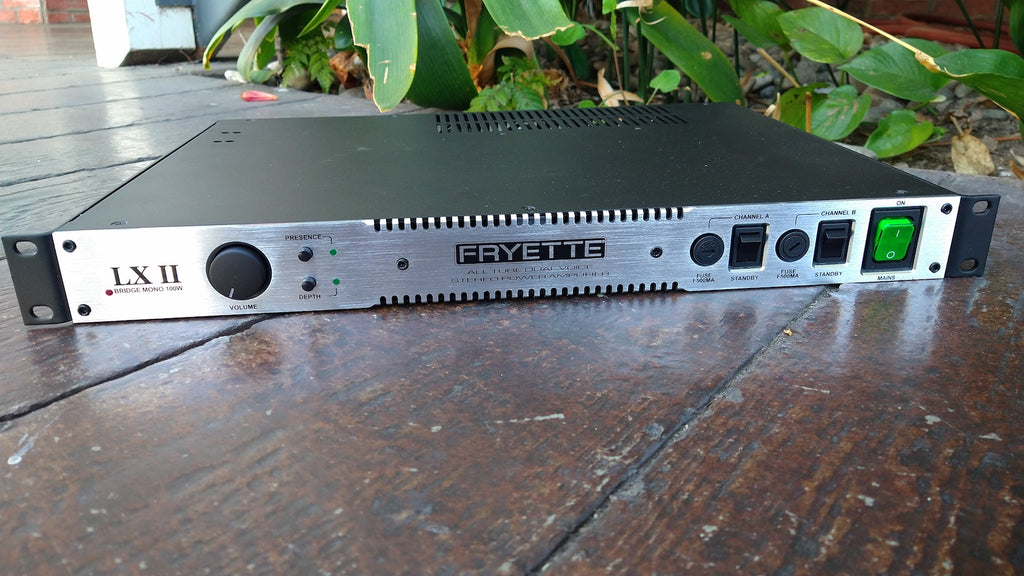

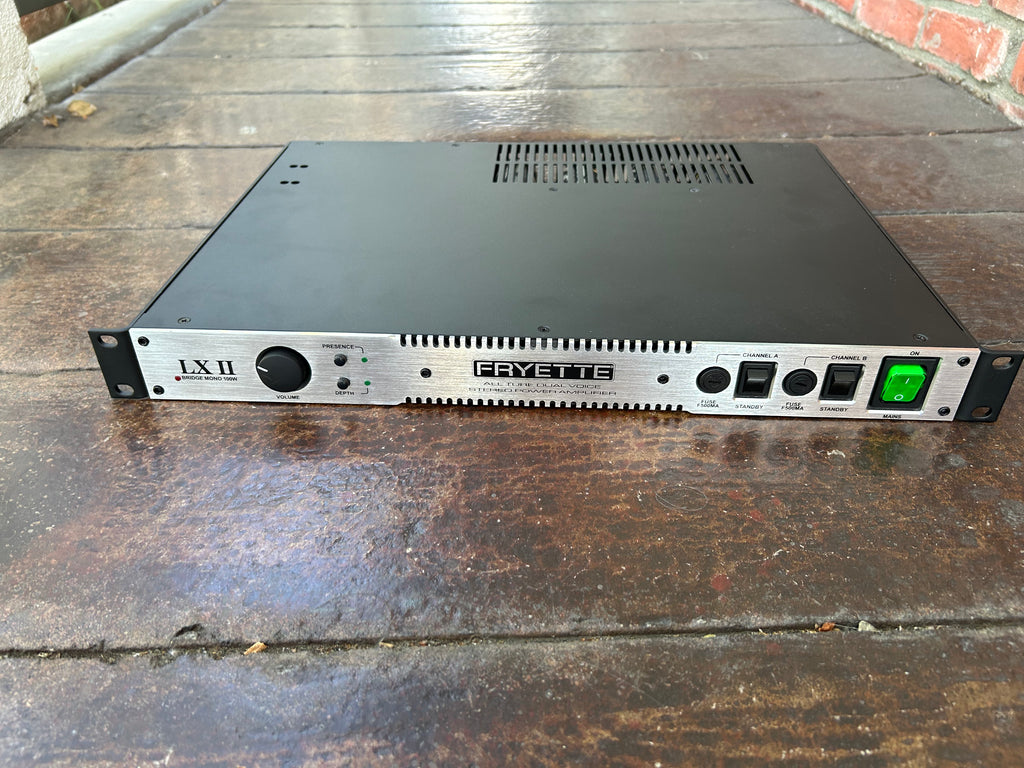

FRONT PANEL
- Volume Control
- Presence and Depth Switches
- Bridge Mono Indicator LED
- Channel A and B Standby Switches
- Channel A and B Fuses
- Power Switch

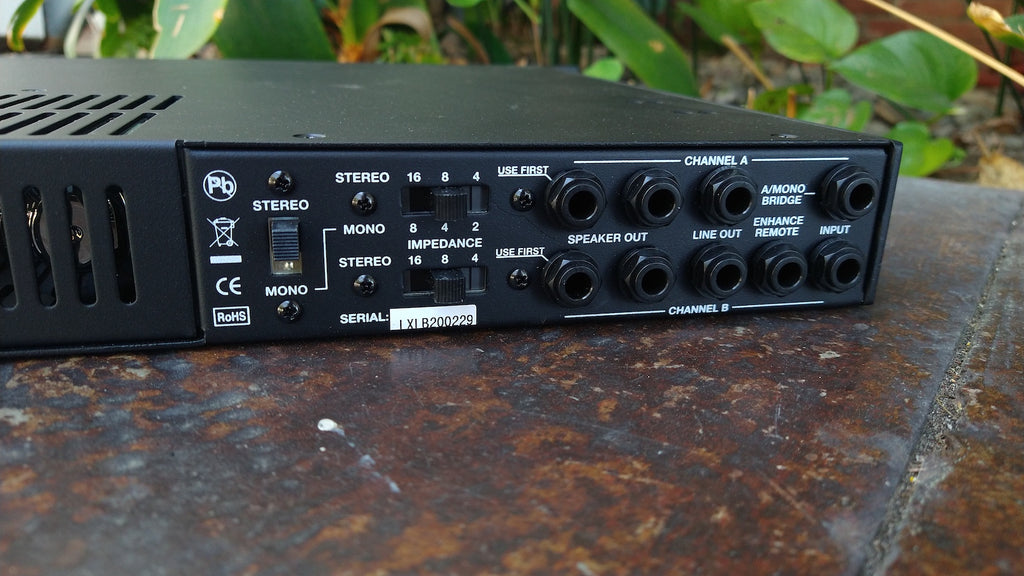

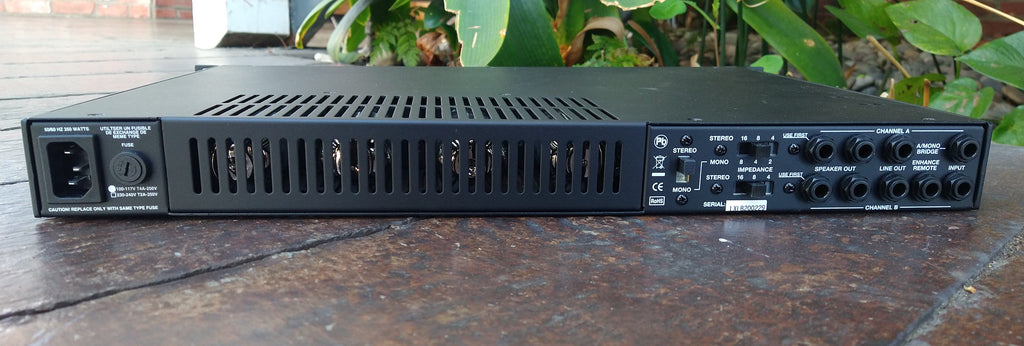

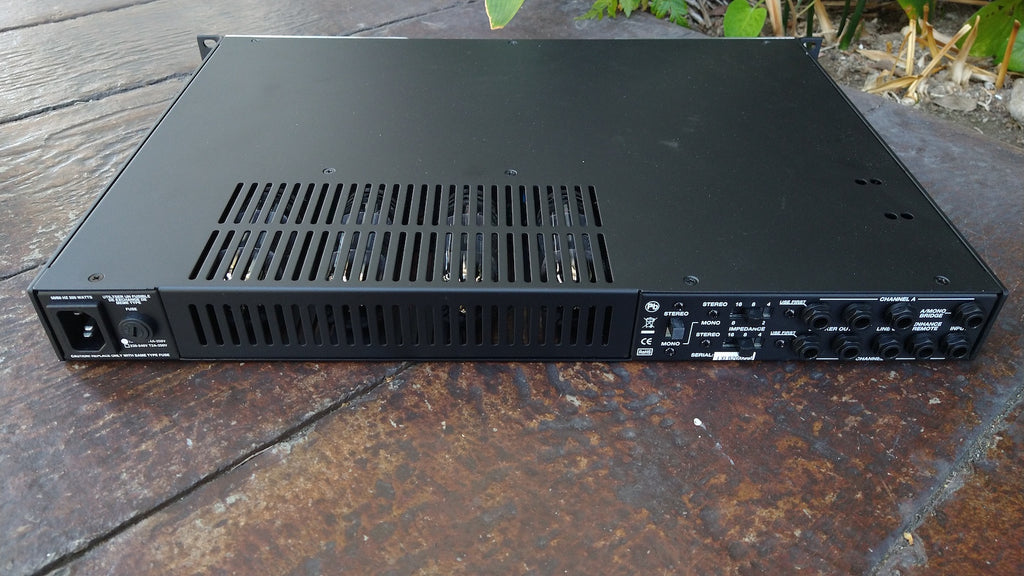

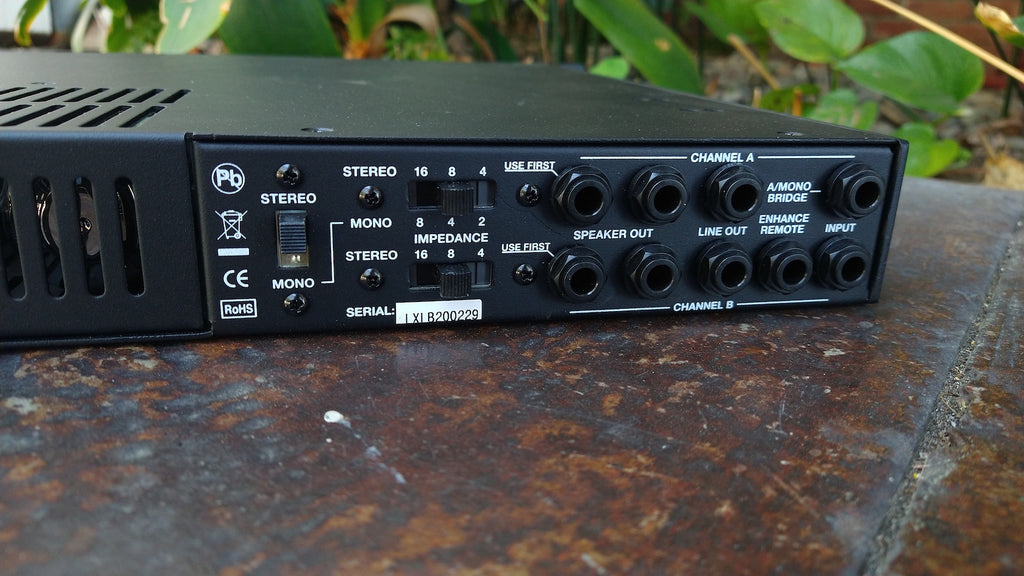

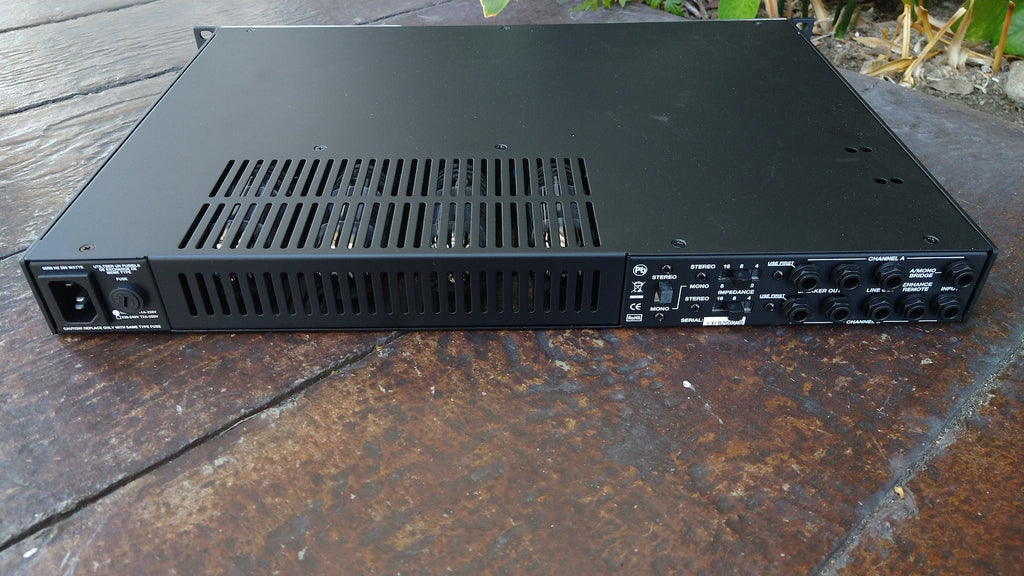

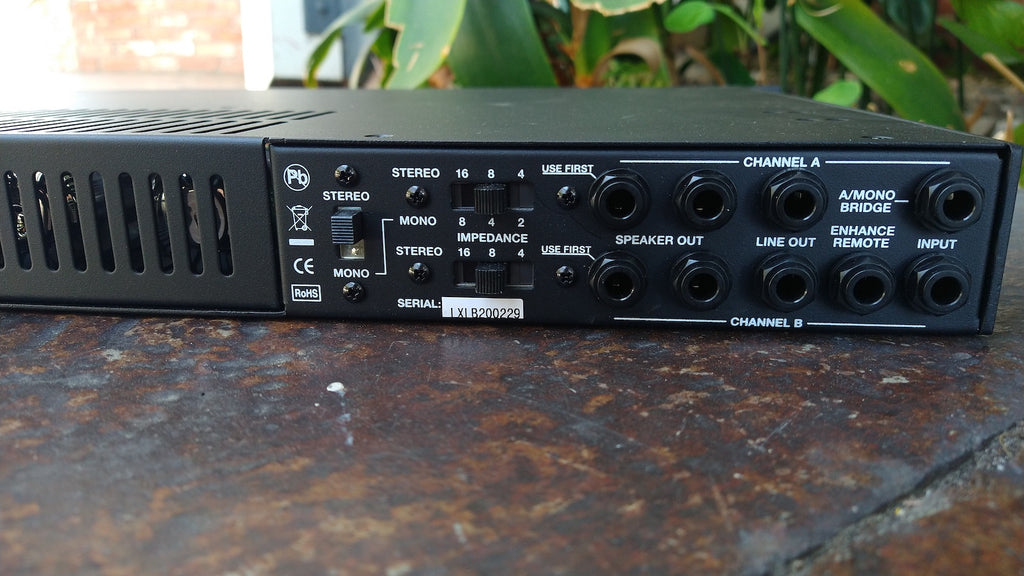

REAR PANEL
- Channel Inputs
- Footswitch for remote control of Presence and Depth functions
- Unbalanced Line Outputs
- Parallel Speaker Outputs for each channel
- Impedance selector for each channel
- Stereo/Mono Switch
- Mains Fuse
- AC Input
DIMENSIONS AND WEIGHT
- Actual Dimensions (W x H x D): 17.5" X 1.75" X 12.5" (44 X 4.4 X 32 cm)
- Front Panel 19” W including rack ears
- Actual Weight: 20 Lbs. (9kg)
- Shipping Dimensions (W x H x D): 24" X 7" X 18" (61 X 18 X 44cm)
- Shipping Weight: 27 Lb. (12 kg)
